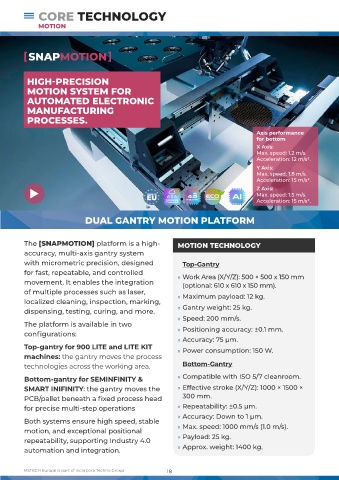

Page 18 - catalogue-mstecheurope

CORE TECHNOLOGY

MOTION

HIGH-PRECISION
MOTION SYSTEM FOR

AUTOMATED ELECTRONIC
MANUFACTURING
PROCESSES.

Axis performance
for bottom
X Axis:
Max. speed: 1.2 m/s.
Acceleration: 12 m/s².
Y Axis:
Max. speed: 1.8 m/s.
Acceleration: 15 m/s².
Z Axis:
Max. speed: 1.5 m/s.
Acceleration: 15 m/s².

DUAL GANTRY MOTION PLATFORM

The [SNAPMOTION] platform is a high- MOTION TECHNOLOGY
accuracy, multi-axis gantry system

with micrometric precision, designed Top-Gantry
for fast, repeatable, and controlled » Work Area (X/Y/Z): 500 × 500 x 150 mm
movement. It enables the integration (optional: 610 x 610 x 150 mm).
of multiple processes such as laser, » Maximum payload: 12 kg.
localized cleaning, inspection, marking,
dispensing, testing, curing, and more. » Gantry weight: 25 kg.
» Speed: 200 mm/s.
The platform is available in two
configurations: » Positioning accuracy: ±0.1 mm.
» Accuracy: 75 µm.
Top-gantry for 900 LITE and LITE KIT » Power consumption: 150 W.
machines: the gantry moves the process
technologies across the working area. Bottom-Gantry

Bottom-gantry for SEMINFINITY & » Compatible with ISO 5/7 cleanroom.
SMART INIFINITY: the gantry moves the » Effective stroke (X/Y/Z): 1000 × 1500 ×
PCB/pallet beneath a fixed process head 300 mm.
for precise multi-step operations » Repeatability: ±0.5 µm.
» Accuracy: Down to 1 µm.
Both systems ensure high speed, stable
motion, and exceptional positional » Max. speed: 1000 mm/s (1.0 m/s).

repeatability, supporting Industry 4.0 » Payload: 25 kg.
automation and integration. » Approx. weight: 1400 kg.
