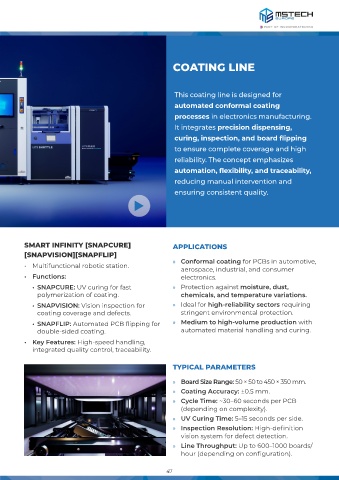

COATING LINE
This coating line is designed for
automated conformal coating
processes in electronics manufacturing.
It integrates precision dispensing,
curing, inspection, and board flipping
to ensure complete coverage and high
reliability. The concept emphasizes
automation, flexibility, and traceability,
reducing manual intervention and
ensuring consistent quality.
SMART INFINITY [SNAPCURE] APPLICATIONS
[SNAPVISION][SNAPFLIP]
» Conformal coating for PCBs in automotive,
• Multifunctional robotic station.
aerospace, industrial, and consumer
• Functions: electronics.
• SNAPCURE: UV curing for fast » Protection against moisture, dust,
polymerization of coating. chemicals, and temperature variations.
• SNAPVISION: Vision inspection for » Ideal for high-reliability sectors requiring
coating coverage and defects. stringent environmental protection.
• SNAPFLIP: Automated PCB flipping for » Medium to high-volume production with
double-sided coating. automated material handling and curing.
• Key Features: High-speed handling,
integrated quality control, traceability.
TYPICAL PARAMETERS
» Board Size Range: 50 × 50 to 450 × 350 mm.
» Coating Accuracy: ±0.5 mm.
» Cycle Time: ~30–60 seconds per PCB
(depending on complexity).
» UV Curing Time: 5–15 seconds per side.
» Inspection Resolution: High-definition
vision system for defect detection.
» Line Throughput: Up to 600–1000 boards/
hour (depending on configuration).
