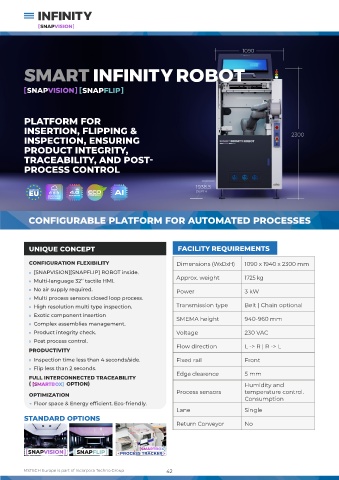

PLATFORM FOR
INSERTION, FLIPPING &
INSPECTION, ENSURING

PRODUCT INTEGRITY,
TRACEABILITY, AND POST-
PROCESS CONTROL

CONFIGURABLE PLATFORM FOR AUTOMATED PROCESSES

UNIQUE CONCEPT FACILITY REQUIREMENTS

CONFIGURATION FLEXIBILITY Dimensions (WxDxH) 1090 x 1940 x 2300 mm
» [SNAPVISION][SNAPFLIP] ROBOT inside.
» Multi-language 32’’ tactile HMI. Approx. weight 1725 kg
» No air supply required. Power 3 kW
» Multi process sensors closed loop process.
» High resolution multi type inspection. Transmission type Belt | Chain optional
» Exotic component insertion SMEMA height 940-960 mm
» Complex assemblies management.
» Product integrity check . Voltage 230 VAC
» Post process control.
Flow direction L -> R | R -> L
PRODUCTIVITY
» Inspection time less than 4 seconds/side. Fixed rail Front
» Flip less than 2 seconds.
Edge clearence 5 mm
FULL INTERCONNECTED TRACEABILITY
( OPTION) Humidity and
Process sensors temperature control.
OPTIMIZATION Consumption
→ Floor space & Energy efficient. Eco-friendly.
Lane Single
STANDARD OPTIONS
Return Conveyor No

PROCESS TRACKER

MSTECH Europe is part of Incorpora Techno Group 42
