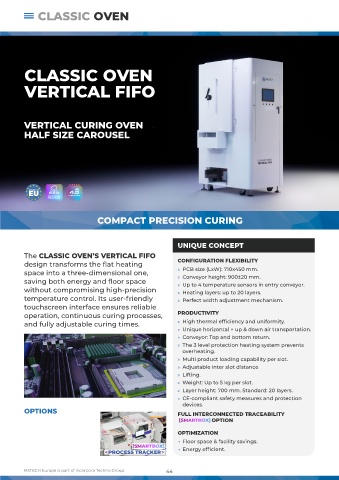

CLASSIC OVEN
CLASSIC OVEN
VERTICAL FIFO
VERTICAL CURING OVEN
HALF SIZE CAROUSEL
COMPACT PRECISION CURING
UNIQUE CONCEPT
The CLASSIC OVEN’S VERTICAL FIFO
design transforms the flat heating CONFIGURATION FLEXIBILITY
space into a three-dimensional one, » PCB size (LxW): 710x450 mm.
saving both energy and floor space » Conveyor height: 900±20 mm.
» Up to 4 temperature sensors in entry conveyor.
without compromising high-precision » Heating layers: up to 20 layers.
temperature control. Its user-friendly » Perfect width adjustment mechanism.
touchscreen interface ensures reliable
operation, continuous curing processes, PRODUCTIVITY
and fully adjustable curing times. » High thermal efficiency and uniformity.
» Unique horizontal + up & down air transportation.
» Conveyor: Top and bottom return.
» The 3 level protection heating system prevents
overheating.
» Multi product loading capability per slot.
» Adjustable inter slot distance
» Lifting.
» Weight: Up to 5 kg per slot.
» Layer height: 700 mm. Standard: 20 layers.
» CE-compliant safety measures and protection
devices.
OPTIONS FULL INTERCONNECTED TRACEABILITY
OPTION
OPTIMIZATION
→ Floor space & facility savings.
PROCESS TRACKER → Energy efficient.
