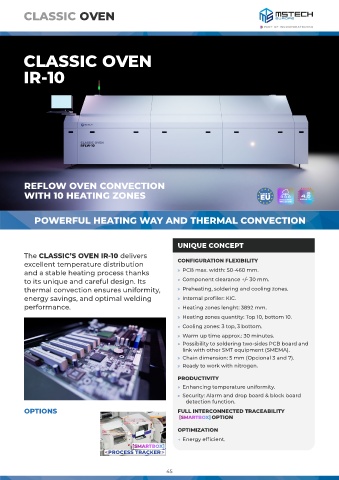

CLASSIC OVEN







         CLASSIC OVEN

         IR-10























          REFLOW OVEN CONVECTION
          WITH 10 HEATING ZONES




 COMPACT PRECISION CURING  POWERFUL HEATING WAY AND THERMAL CONVECTION




                                                               UNIQUE CONCEPT
          The CLASSIC’S OVEN IR-10 delivers
          excellent temperature distribution                   CONFIGURATION FLEXIBILITY
          and a stable heating process thanks                     » PCB max. width: 50-460 mm.
          to its unique and careful design. Its                   » Component clearance +/- 30 mm.
          thermal convection ensures uniformity,                  » Preheating, soldering and cooling zones.
          energy savings, and optimal welding                     » Internal profiler: KIC.
          performance.                                            » Heating zones lenght: 3892 mm.

                                                                  » Heating zones quantity: Top 10, bottom 10.
                                                                  » Cooling zones: 3 top, 3 bottom.
                                                                  » Warm up time approx.: 30 minutes.
                                                                  » Possibility to soldering two-sides PCB board and
                                                                 link with other SMT equipment (SMEMA).
                                                                  » Chain dimension: 5 mm (Opcional 3 and 7).
                                                                  » Ready to work with nitrogen.

                                                               PRODUCTIVITY
                                                                  » Enhancing temperature uniformity.
                                                                  » Security: Alarm and drop board & block board
                                                                  detection function.
          OPTIONS                                              FULL INTERCONNECTED TRACEABILITY
                                                                           OPTION
                                                               OPTIMIZATION

                                                                   → Energy efficient.
                                       PROCESS TRACKER
