P. 41

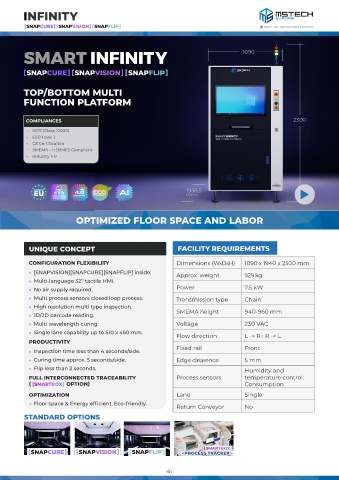

TOP/BOTTOM MULTI
FUNCTION PLATFORM
COMPLIANCES
→ ISO7 (Class 10000)
→ ESD Level 1
→ CE Certification
→ SMEMA – HERMES Compliant
→ Industry 4.0
HIGH UPH MULTI-FUNCTION PLATFORM OPTIMIZED FLOOR SPACE AND LABOR
UNIQUE CONCEPT FACILITY REQUIREMENTS
CONFIGURATION FLEXIBILITY Dimensions (WxDxH) 1090 x 1940 x 2300 mm
» [SNAPVISION][SNAPCURE][SNAPFLIP] inside. Approx. weight 929 kg
» Multi-language 32’’ tactile HMI.
» No air supply required. Power 7.5 kW
» Multi process sensors closed loop process. Transmission type Chain
» High resolution multi type inspection.
» 1D/2D barcode reading. SMEMA height 940-960 mm
» Multi wavelength curing. Voltage 230 VAC
» Single lane capability up to 510 x 460 mm.
Flow direction L -> R | R -> L
PRODUCTIVITY
Fixed rail Front
» Inspection time less than 4 seconds/side.
» Curing time approx. 5 seconds/side. Edge clearence 5 mm
» Flip less than 2 seconds. Humidity and
FULL INTERCONNECTED TRACEABILITY Process sensors temperature control.
( OPTION) Consumption
OPTIMIZATION Lane Single
→ Floor space & Energy efficient. Eco-friendly.
Return Conveyor No
STANDARD OPTIONS
PROCESS TRACKER
41
