HANDLING | CURING |

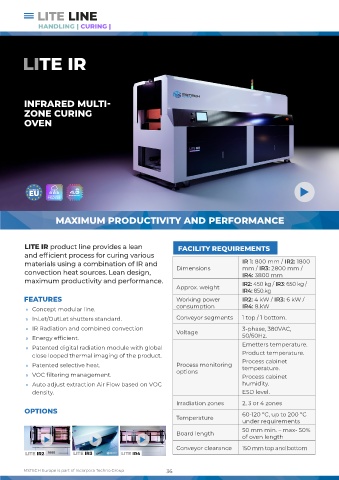

INFRARED MULTI-
ZONE CURING

OVEN

MAXIMUM PRODUCTIVITY AND PERFORMANCE

LITE IR product line provides a lean FACILITY REQUIREMENTS
and efficient process for curing various
materials using a combination of IR and IR 1: 800 mm / IR2: 1800
convection heat sources. Lean design, Dimensions mm / IR3: 2800 mm /
IR4: 3800 mm
maximum productivity and performance. IR2: 450 kg / IR3: 650 kg /
Approx. weight
IR4: 850.kg
FEATURES Working power IR2: 4 kW / IR3: 6 kW /

» Concept modular line. consumption IR4: 8.kW
» InLet/OutLet shutters standard. Conveyor segments 1 top / 1 bottom.
» IR Radiation and combined convection 3-phase, 380VAC,
Voltage
» Energy efficient. 50/60Hz.
Emetters temperature.
» Patented digital radiation module with global
close looped thermal imaging of the product. Product temperature.
» Patented selective heat. Process monitoring Process cabinet
temperature.
» VOC filtering management. options Process cabinet
» Auto adjust extraction Air Flow based on VOC humidity.
density. ESD level.

Irradiation zones 2, 3 or 4 zones
OPTIONS
Temperature 60-120 ºC, up to 200 ºC
under requirements
50 mm min. – max- 50%
Board length
of oven length
Conveyor clearance 150 mm top and bottom

MSTECH Europe is part of Incorpora Techno Group 36
