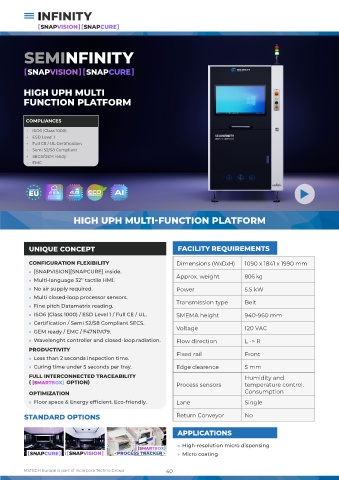

P. 40
HIGH UPH MULTI
FUNCTION PLATFORM
COMPLIANCES
→ ISO6 (Class 1000)
→ ESD Level 1
→ Full CE / UL Certification
→ Semi S2/S8 Compliant
→ SECS/GEM ready
→ EMC
HIGH UPH MULTI-FUNCTION PLATFORM
UNIQUE CONCEPT FACILITY REQUIREMENTS
CONFIGURATION FLEXIBILITY Dimensions (WxDxH) 1090 x 1841 x 1990 mm
» [SNAPVISION][SNAPCURE] inside.
» Multi-language 32’’ tactile HMI. Approx. weight 806 kg
» No air supply required. Power 5.5 kW
» Multi closed-loop processor sensors.
» Fine pitch Datamatrix reading. Transmission type Belt
» ISO6 (Class 1000) / ESD Level 1 / Full CE / UL. SMEMA height 940-960 mm
» Certification / Semi S2/S8 Compliant SECS.
» GEM ready / EMC / F47NPA79. Voltage 120 VAC
» Wavelenght controller and closed-loop.radiation. Flow direction L -> R
PRODUCTIVITY
» Less than 2 seconds inspection time. Fixed rail Front
» Curing time under 5 seconds per tray. Edge clearence 5 mm
FULL INTERCONNECTED TRACEABILITY Humidity and
( OPTION) Process sensors temperature control.
OPTIMIZATION Consumption
» Floor space & Energy efficient. Eco-friendly. Lane Single
STANDARD OPTIONS Return Conveyor No
APPLICATIONS
» High-resolution micro dispensing
PROCESS TRACKER » Micro coating
MSTECH Europe is part of Incorpora Techno Group 40
