HANDLING |
HANDLING | INSPECTION

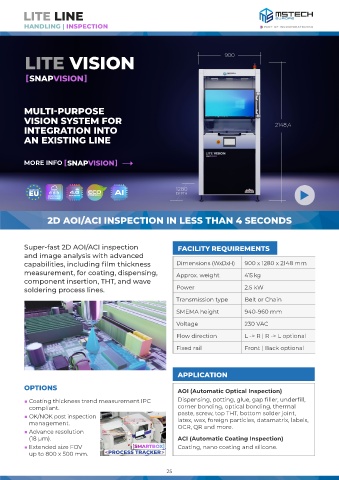

LITE VISION
MULTI-PURPOSE
VISION SYSTEM FOR
INTEGRATION INTO
AN EXISTING LINE
MORE INFO
ULTRA-FAST CURING IN JUST 10 SECONDS 2D AOI/ACI INSPECTION IN LESS THAN 4 SECONDS
Super-fast 2D AOI/ACI inspection FACILITY REQUIREMENTS
and image analysis with advanced
capabilities, including film thickness Dimensions (WxDxH) 900 x 1280 x 2148 mm
measurement, for coating, dispensing, Approx. weight 415 kg
component insertion, THT, and wave
soldering process lines. Power 2.5 kW
Transmission type Belt or Chain
SMEMA height 940-960 mm
Voltage 230 VAC
Flow direction L -> R | R -> L optional
Fixed rail Front | Back optional
APPLICATION
OPTIONS AOI (Automatic Optical Inspection)
■ Coating thickness trend measurement IPC Dispensing, potting, glue, gap filler, underfill,
compliant. corner bonding, optical bonding, thermal
■ OK/NOK post inspection paste, screw, top THT, bottom solder joint,
latex, wax, foreign particles, datamatrix, labels,
management. OCR, QR and more.
■ Advance resolution
(18 µm). ACI (Automatic Coating Inspection)
■ Extended size FOV Coating, nano coating and silicone.
up to 800 x 500 mm. PROCESS TRACKER
