P. 28
HANDLING |

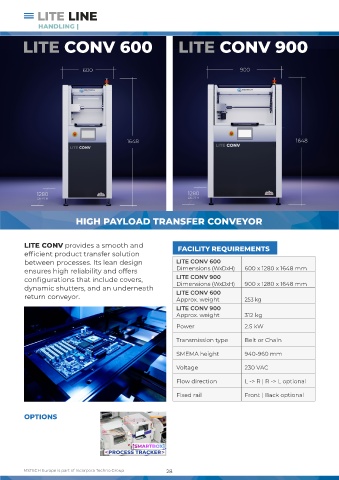

HIGH PAYLOAD TRANSFER CONVEYOR
LITE CONV provides a smooth and FACILITY REQUIREMENTS
efficient product transfer solution
between processes. Its lean design LITE CONV 600
ensures high reliability and offers Dimensions (WxDxH) 600 x 1280 x 1648 mm
configurations that include covers, LITE CONV 900
dynamic shutters, and an underneath Dimensions (WxDxH) 900 x 1280 x 1648 mm
return conveyor. LITE CONV 600 253 kg
Approx. weight
LITE CONV 900
Approx. weight 312 kg
Power 2.5 kW
Transmission type Belt or Chain
SMEMA height 940-960 mm
Voltage 230 VAC
Flow direction L -> R | R -> L optional
Fixed rail Front | Back optional
OPTIONS
PROCESS TRACKER
MSTECH Europe is part of Incorpora Techno Group 28
