HANDLING | CURING | INSPECTION |

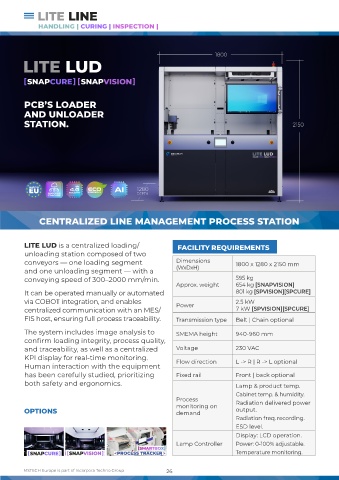

PCB’S LOADER
AND UNLOADER
STATION.

CENTRALIZED LINE MANAGEMENT PROCESS STATION

LITE LUD is a centralized loading/ FACILITY REQUIREMENTS
unloading station composed of two
conveyors — one loading segment Dimensions 1800 x 1280 x 2150 mm
and one unloading segment — with a (WxDxH)
conveying speed of 300–2000 mm/min. 595 kg
Approx. weight 654 kg [SNAPVISION]
It can be operated manually or automated 801 kg [SPVISION][SPCURE]
via COBOT integration, and enables 2.5 kW
centralized communication with an MES/ Power 7 kW [SPVISION][SPCURE]
FIS host, ensuring full process traceability. Transmission type Belt | Chain optional

The system includes image analysis to SMEMA height 940-960 mm
confirm loading integrity, process quality,
and traceability, as well as a centralized Voltage 230 VAC
KPI display for real-time monitoring.
Human interaction with the equipment Flow direction L -> R | R -> L optional
has been carefully studied, prioritizing Fixed rail Front | back optional
both safety and ergonomics. Lamp & product temp.

Cabinet temp. & humidity.
Process Radiation delivered power
monitoring on
OPTIONS demand output.
Radiation freq. recording.
ESD level.
Display: LCD operation.
Lamp Controller Power: 0-100% adjustable.

PROCESS TRACKER Temperature monitoring.

MSTECH Europe is part of Incorpora Techno Group 26
