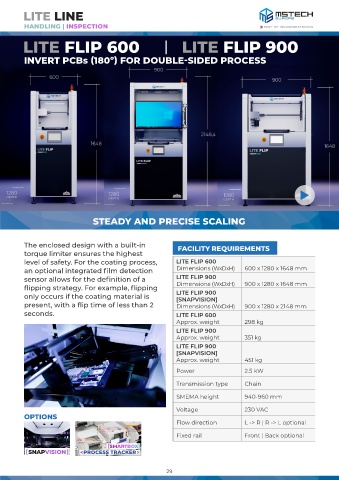

HANDLING | INSPECTION

INVERT PCBs (180º) FOR DOUBLE-SIDED PROCESS

STEADY AND PRECISE SCALING

The enclosed design with a built-in FACILITY REQUIREMENTS
torque limiter ensures the highest
level of safety. For the coating process, LITE FLIP 600
an optional integrated film detection Dimensions (WxDxH) 600 x 1280 x 1648 mm
sensor allows for the definition of a LITE FLIP 900
flipping strategy. For example, flipping Dimensions (WxDxH) 900 x 1280 x 1648 mm
only occurs if the coating material is LITE FLIP 900
[SNAPVISION]
present, with a flip time of less than 2 Dimensions (WxDxH) 900 x 1280 x 2148 mm
seconds. LITE FLIP 600
Approx. weight 298 kg
LITE FLIP 900
Approx. weight 351 kg
LITE FLIP 900
[SNAPVISION]
Approx. weight 451 kg
Power 2.5 kW

Transmission type Chain

SMEMA height 940-960 mm

Voltage 230 VAC
OPTIONS
Flow direction L -> R | R -> L optional

Fixed rail Front | Back optional

PROCESS TRACKER
