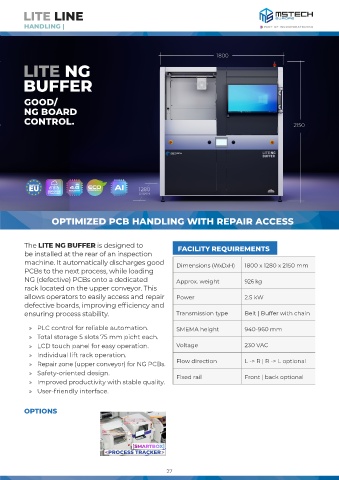

HANDLING |
GOOD/
NG BOARD
CONTROL.
OPTIMIZED PCB HANDLING WITH REPAIR ACCESS
The LITE NG BUFFER is designed to FACILITY REQUIREMENTS
be installed at the rear of an inspection
machine. It automatically discharges good Dimensions (WxDxH) 1800 x 1280 x 2150 mm
PCBs to the next process, while loading
NG (defective) PCBs onto a dedicated Approx. weight 926 kg
rack located on the upper conveyor. This
allows operators to easily access and repair Power 2.5 kW
defective boards, improving efficiency and
ensuring process stability. Transmission type Belt | Buffer with chain
» PLC control for reliable automation. SMEMA height 940-960 mm
» Total storage 5 slots 75 mm picht each.
» LCD touch panel for easy operation. Voltage 230 VAC
» Individual lift rack operation.
» Repair zone (upper conveyor) for NG PCBs. Flow direction L -> R | R -> L optional
» Safety-oriented design. Fixed rail Front | back optional
» Improved productivity with stable quality.
» User-friendly interface.
OPTIONS
PROCESS TRACKER
