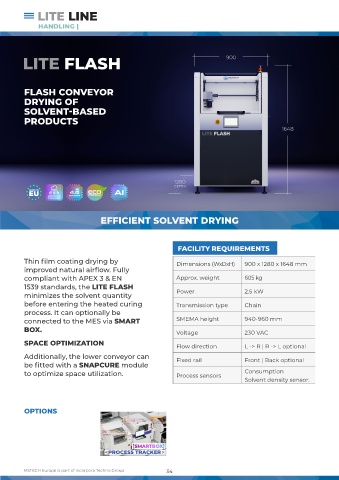

Page 34 - catalogue-mstecheurope
P. 34
LITE
HANDLING |
FLASH
FLASH CONVEYOR
DRYING OF
SOLVENT-BASED
PRODUCTS
EFFICIENT SOLVENT DRYING
FACILITY REQUIREMENTS
Thin film coating drying by Dimensions (WxDxH) 900 x 1280 x 1648 mm
improved natural airflow. Fully
compliant with APEX 3 & EN Approx. weight 605 kg
1539 standards, the LITE FLASH
minimizes the solvent quantity Power 2.5 kW
before entering the heated curing Transmission type Chain
process. It can optionally be
connected to the MES via SMART SMEMA height 940-960 mm
BOX. Voltage 230 VAC
SPACE OPTIMIZATION Flow direction L -> R | R -> L optional
Additionally, the lower conveyor can Fixed rail Front | Back optional
be fitted with a SNAPCURE module
to optimize space utilization. Process sensors Consumption
Solvent density sensor.
OPTIONS
PROCESS TRACKER
MSTECH Europe is part of Incorpora Techno Group 34
