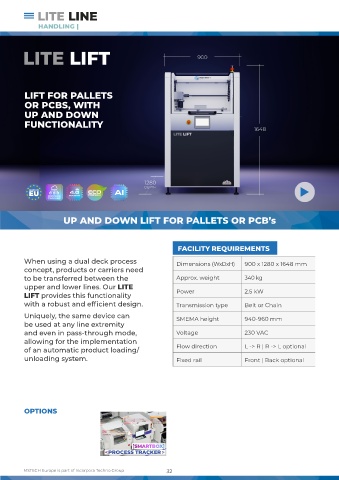

Page 32 - catalogue-mstecheurope
P. 32
HANDLING |
LIFT FOR PALLETS
OR PCBS, WITH
UP AND DOWN
FUNCTIONALITY
UP AND DOWN LIFT FOR PALLETS OR PCB’s
FACILITY REQUIREMENTS
When using a dual deck process Dimensions (WxDxH) 900 x 1280 x 1648 mm
concept, products or carriers need
to be transferred between the Approx. weight 340 kg
upper and lower lines. Our LITE
LIFT provides this functionality Power 2.5 kW
with a robust and efficient design. Transmission type Belt or Chain
Uniquely, the same device can SMEMA height 940-960 mm
be used at any line extremity
and even in pass-through mode, Voltage 230 VAC
allowing for the implementation
of an automatic product loading/ Flow direction L -> R | R -> L optional
unloading system. Fixed rail Front | Back optional
OPTIONS
PROCESS TRACKER
