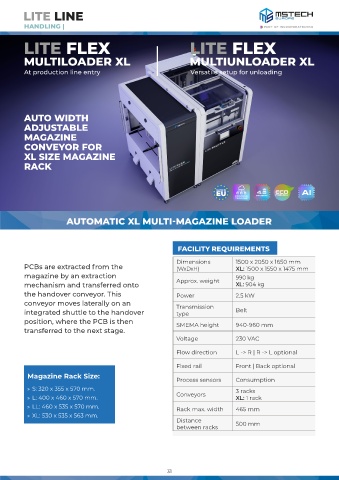

Page 31 - catalogue-mstecheurope

HANDLING |

At production line entry Versatile setup for unloading

AUTO WIDTH
ADJUSTABLE

MAGAZINE
CONVEYOR FOR
XL SIZE MAGAZINE
RACK

AUTOMATIC XL MULTI-MAGAZINE LOADER

FACILITY REQUIREMENTS

Dimensions 1500 x 2050 x 1650 mm
PCBs are extracted from the (WxDxH) XL: 1500 x 1550 x 1475 mm
magazine by an extraction 990 kg
mechanism and transferred onto Approx. weight XL: 904 kg
the handover conveyor. This Power 2.5 kW
conveyor moves laterally on an Transmission
integrated shuttle to the handover type Belt
position, where the PCB is then SMEMA height 940-960 mm
transferred to the next stage.
Voltage 230 VAC

Flow direction L -> R | R -> L optional

Fixed rail Front | Back optional
Magazine Rack Size:
Process sensors Consumption
» S: 320 x 355 x 570 mm. 3 racks
» L: 400 x 460 x 570 mm. Conveyors XL: 1 rack
» LL: 460 x 535 x 570 mm. Rack max. width 465 mm
» XL: 530 x 535 x 563 mm.
Distance 500 mm
between racks
