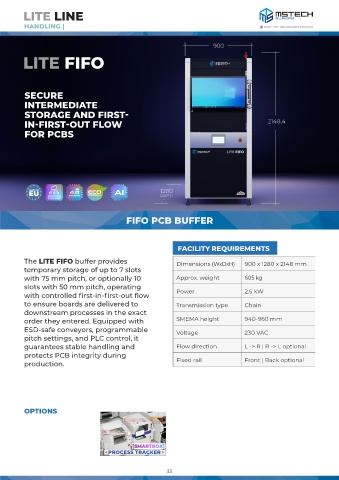

P. 33
HANDLING |
SECURE
INTERMEDIATE
STORAGE AND FIRST-
IN-FIRST-OUT FLOW
FOR PCBS
UP AND DOWN LIFT FOR PALLETS OR PCB’s FIFO PCB BUFFER
FACILITY REQUIREMENTS
The LITE FIFO buffer provides Dimensions (WxDxH) 900 x 1280 x 2148 mm
temporary storage of up to 7 slots
with 75 mm pitch, or optionally 10 Approx. weight 605 kg
slots with 50 mm pitch, operating
with controlled first-in-first-out flow Power 2.5 kW
to ensure boards are delivered to Transmission type Chain
downstream processes in the exact
order they entered. Equipped with SMEMA height 940-960 mm
ESD-safe conveyors, programmable Voltage 230 VAC
pitch settings, and PLC control, it
guarantees stable handling and Flow direction L -> R | R -> L optional
protects PCB integrity during
production. Fixed rail Front | Back optional
OPTIONS
PROCESS TRACKER
33
