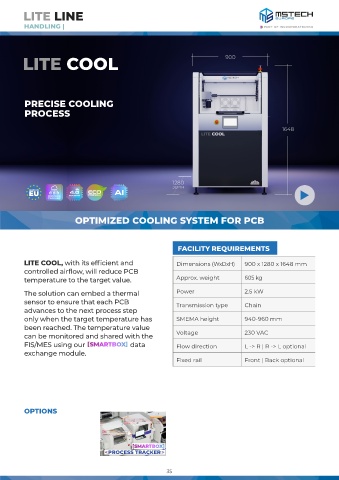

Page 35 - catalogue-mstecheurope
P. 35
HANDLING |
LITE COOL
PRECISE COOLING
PROCESS
EFFICIENT SOLVENT DRYING OPTIMIZED COOLING SYSTEM FOR PCB
FACILITY REQUIREMENTS
LITE COOL, with its efficient and Dimensions (WxDxH) 900 x 1280 x 1648 mm
controlled airflow, will reduce PCB
temperature to the target value. Approx. weight 605 kg
The solution can embed a thermal Power 2.5 kW
sensor to ensure that each PCB Transmission type Chain
advances to the next process step
only when the target temperature has SMEMA height 940-960 mm
been reached. The temperature value
can be monitored and shared with the Voltage 230 VAC
FIS/MES using our data Flow direction L -> R | R -> L optional
exchange module.
Fixed rail Front | Back optional
OPTIONS
PROCESS TRACKER
35
